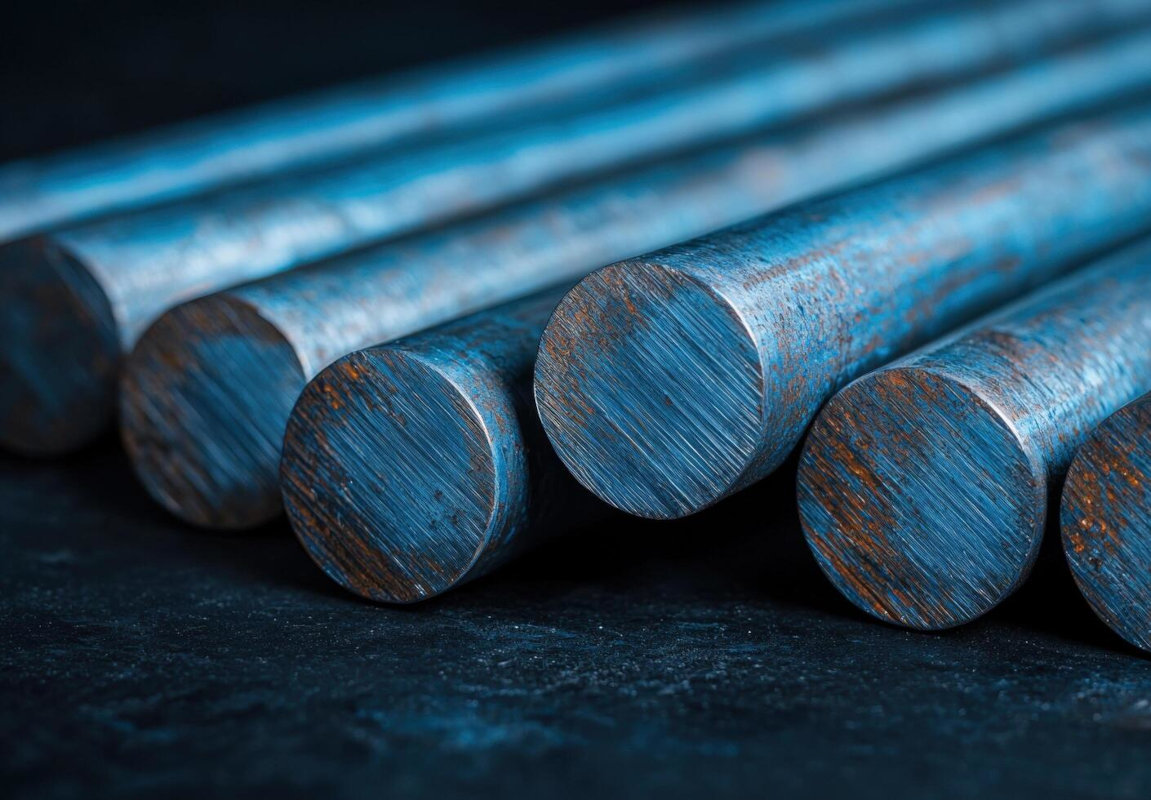

Iron-Chromium-Aluminum (FeCrAl) series
Discover the Advantages of the FeCrAl Alloy
The FeCrAl alloy offers outstanding properties that make it the perfect choice for demanding applications. With its high specific resistivity and a low temperature resistance coefficient, it not only ensures excellent conductivity but also provides effective protection against oxidation and corrosion — even at extremely high temperatures.
Applications:
- Industrial furnaces: For efficient heat generation
- Household appliances: Reliable heating elements for everyday use
- Metallurgy and machinery: Essential for precise processes
- Aerospace and automotive: Meeting high performance demands
- Military and specialty industries: Durability and resistance where it matters
Rely on the FeCrAl alloy for your heating and resistance elements. Choose quality and performance that deliver across industries.
Size range (mm): 8 – 50
Variants: 1Cr13Al4, 0Cr15Al5, 0Cr19Al3, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2
| Alloy Nomenclature Performance |
1Cr13Al4 | 0Cr25AI5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21AI6Nb | 0Cr27Al7Mo2 | |
|---|---|---|---|---|---|---|---|---|
| Chemical Composition (%) |
Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Re | opportune | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | REST | REST | REST | REST | REST | REST | REST | |
| — | — | — | — | — | Nb0.5 | Mo1.8-2.2 | ||
| Max. continuous service temp. of element (°C) |
950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
| Resistivity at 20°C (μΩ⋅m) |
1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density (g/cm³) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Thermal conductivity (KJ/m⋅h⋅°C) |
52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | — | |
| Coefficient of lines expansion (α×10⁻⁶ / °C) |
15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 | |
| Melting point approx. (°C) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Tensile strength (N/mm²) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 | |
| Elongation at rupture (%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 | |
| Variation of area (%) | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | |
| Repeat Bending frequency (F/R) |
>5 | >5 | >5 | >5 | >5 | >5 | >5 | |
| Hardness (H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Continuous servicetime (Hours/°C) |
— | >80/1300 | >80/1300 | >80/1300 | >80/1250 | >50/1350 | >50/1350 | |
| Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |

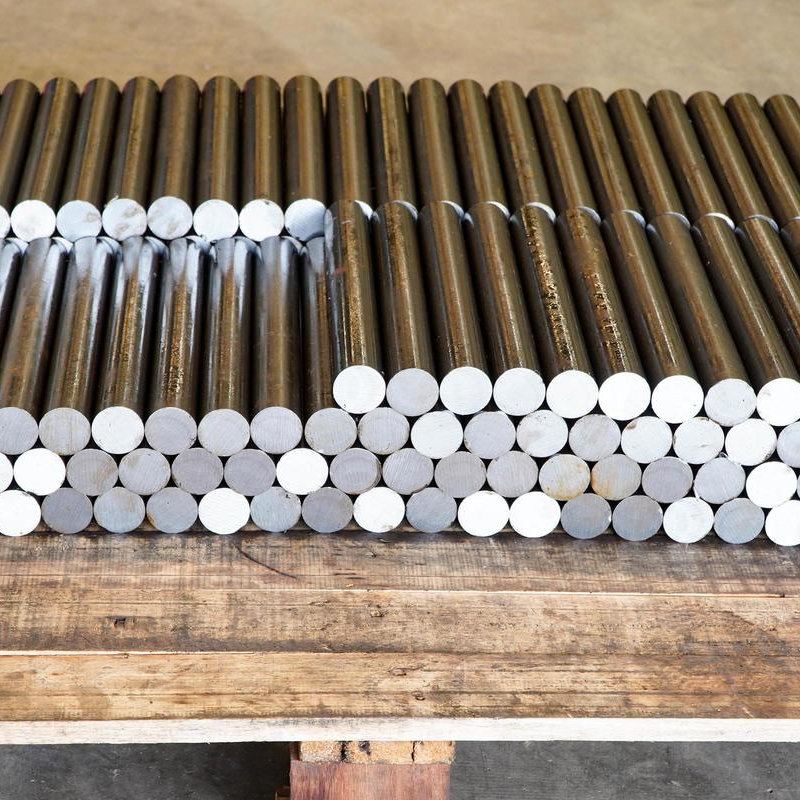

Nickel-Chromium (NiCr) series
Nichrome — The Ideal Choice for High-Temperature Applications
Nichrome stands out as a premium material thanks to excellent ductility, workability, and weldability even at high temperatures and under dynamic loading. The nickel‑chromium alloy also offers:
- High and stable resistance for precise performance
- Corrosion and surface oxidation resistance for long service life
- Excellent coil-forming ability, ideal for heating elements and coils
Perfect for industrial heating elements, electrical resistors, and demanding applications where reliability and formability are crucial. Choose Nichrome for durable, high-performance solutions.
Size range (mm): 8 – 50
Variants: Cr10Ni90, Cr20Ni80, Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr30Ni70
| Performance/ material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
|---|---|---|---|---|---|---|---|
| Chemical Composition (%) |
Ni | 09 | Rest | Rest | 55.0~61.0 | 34.0~37.0 | 30.0~34.0 |
| Cr | 10 | 20.0~23.0 | 28.0~31.0 | 15.0~18.0 | 18.0~21.0 | 18.0~21.0 | |
| Fe | — | ≤1.0 | ≤1.0 | REST | REST | REST | |
| Maximum temperature (°C) | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Melting point (°C) | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Density (g/cm³) | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Resistivity (μΩ⋅m, 20°C) | — | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | |
| Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
| Specific heat (J/g.°C) | — | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | |
| Thermal conductivity (KJ/m.h°C) |
— | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion (α×10⁻⁶ / (20~1000°C)) |
— | 18 | 17 | 17 | 19 | 19 | |
| Micrographic structure | — | Austenite | Austenite | Austenite | Austenite | Austenite | |
| Magnetic properties | — | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic | |

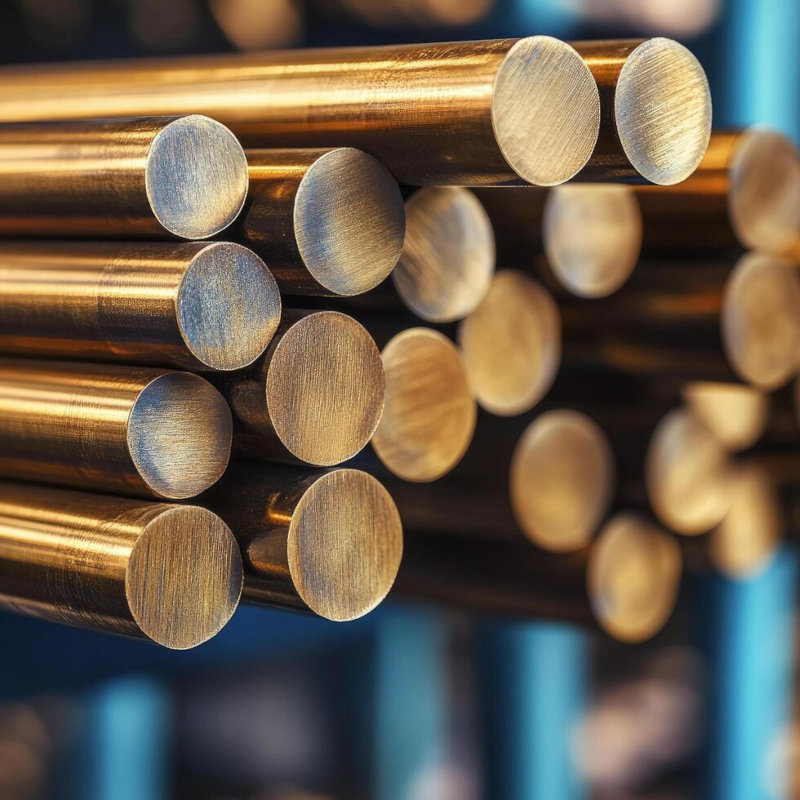

Copper-nickel (CuNi) series
Copper‑Nickel Alloy — Reliable, Powerful, Malleable
The copper‑nickel alloy impresses with low electrical resistance, high heat and corrosion resistance, and very good processability and solderability. This makes it ideal for demanding electrical components.
Applications:
- Switching and protection technology: Key components in thermal overload relays and low-resistance thermal circuit breakers
- Electrical appliances: Reliable contact and conductor solutions
- Electric heating cables: Robust material for heating elements and flexible conductors
Choose copper‑nickel for durable, precise, and high-performing electrical components.
Size range (mm): 8 – 50
Variants: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40, CuNi44, 6J8, 6J11, 6J12, 6J13
| Performance | Constantan 6J40 |
New Constantan 6J11 |
Manganin 6J12 |
Manganin 6J8 |
Manganin 6J13 |
|
|---|---|---|---|---|---|---|
| Chemical Composition (%) |
Ni | 1~2 | 10.5~12.5 | 11~13 | 8~10 | 11~13 |
| Cr | 39~41 | — | 2~3 | — | 2~5 | |
| Fe | REST | REST | REST | REST | REST | |
| — | Al2.5~4.5 Fe1.0~1.6 | — | Si1~2 | — | ||
| Temperature Range for Components (°C) |
5~500 | 5~500 | 5~45 | 10~80 | 10~80 | |
| Density (g/cm³) | 8.88 | 8 | 8.44 | 8.7 | 8.4 | |
| Resistivity (μΩ⋅m,20) | 0.48±0.03 | 0.49±0.03 | 0.47±0.03 | 0.35±0.05 | 0.44±0.04 | |
| Extensibility (%⌀0.5) | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | |
| Resistance Temperature Quotiety (α×10-6 / °C) |
-40~+40 | -80~+80 | -3~+20 | -5~+10 | 0~+40 | |
| Thermoelectromotive force to Copper (μV / (0~100)) |
45 | 2 | 1 | 2 | 2 | |
| Properties/ Material |
Resistivity (200°C μΩ⋅m) |
Max. working temperature (°C) |
Tensile strength (Mpa) |
Melting point (°C) |
Density (g/cm³) |
TCR (×10⁻⁶ / °C) (20~600°C) |
EMF vs Cu (μV / °C) (0~100°C) |
|---|---|---|---|---|---|---|---|
| NC003 (CuNi1) |
0.03 | 200 | 210 | 1085 | 8.9 | <100 | -8 |
| NC005 (CuNi2) |
0.05 | 200 | 220 | 1090 | 8.9 | <120 | -12 |
| NC010 (CuNi6) |
0.1 | 220 | 250 | 1095 | 8.9 | <60 | -18 |
| NC012 (CuNi8) |
0.12 | 250 | 270 | 1097 | 8.9 | <57 | -22 |
| NC015 (CuNi10) |
0.15 | 250 | 290 | 110 | 8.9 | <50 | -25 |
| NC020 (CuNi14) |
0.2 | 300 | 310 | 1115 | 8.9 | <30 | -28 |
| NC025 (CuNi19) |
0.25 | 300 | 350 | 1150 | 8.9 | <25 | -32 |
| NC030 (CuNi23) |
0.3 | 300 | 350 | 1150 | 8.9 | <16 | -34 |
| NC035 (CuNi30) |
0.35 | 350 | 400 | 1170 | 8.9 | <10 | -37 |
| NC040 (CuNi34) |
0.4 | 350 | 400 | 1180 | 8.9 | 0 | -39 |
| NC050 (CuNi44) |
0.5 | 400 | 420 | 1200 | 8.9 | <-6 | -43 |
Nitinol Series
Nitinol (Shape Memory Alloy) — Precision Through Intelligent Materials
Nitinol, a nickel‑titanium shape memory alloy (SMA), combines thermoelastic properties and martensitic phase transformation to create a material with impressive shape memory. The alloy features high strength, excellent plasticity, corrosion resistance, high stability, and very good biocompatibility.
Benefits at a glance:
- Shape memory: Returns to its original form upon heating
- High performance: Durable under dynamic stress
- Corrosion-resistant & biocompatible: Suitable for medical applications
- Good workability: Precise forming and reliable components
Applications:
- Aerospace: Active components and precision mechanisms
- Electromechanics: Actuators and sensors
- Medical technology: Stents, implants, and minimally invasive instruments
- Bridge construction & automotive: Damping and self-adjusting components
- Everyday technology: Innovative solutions for consumer applications
Choose Nitinol for smart, durable, and high-performance solutions where precision and adaptability matter.
Size range (mm): 8.0 – 200
Varianten: N4, N6, Ni200, Ni201
| Fe | Ni | Cr | Cu | Nb |
|---|---|---|---|---|
| ≤0.05 | 54.5-57.0 | ≤0.01 | ≤0.01 | ≤0.025 |
| C | Ti | Co | N+O | H |
| ≤0.05 | Balanced | ≤0.05 | ≤0.050 | ≤0.005 |
| Diameter | 4.00-2.00 | 2.00-1.00 | 1.00-0.35 | 0.35-0.26 | 0.26-0.15 | 0.15-0.05 |
|---|---|---|---|---|---|---|
| Tolerance | ±0.020 | ±0.015 | ±0.010 | ±0.007 | ±0.005 | ±0.004 |
| Melting Point | 1310°C |
|---|---|
| Density | 6.5 g/cm³ |
| Specific Resistance | 82 μΩcm |
| Thermal Expansion Coefficient | 11×10⁻⁶ °K |
| Elasticity | 41-75GPa |
